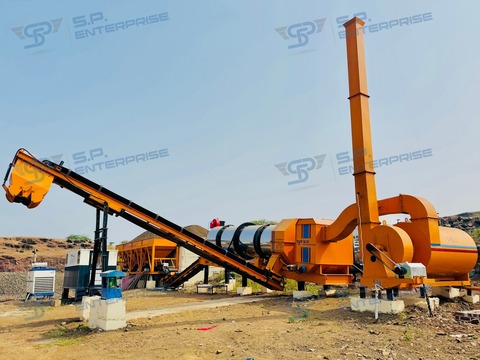

Hot Mix Plant
Hot Mix Plant
Ongoing road construction activities around the world require efficient hot mix plant to produce high quality hot mix asphalt for constructing durable asphalt roads.
Our hot mix plants specialize in efficiently heating and blending aggregates with bitumen to produce HMA at elevated temperatures, ensuring optimal compaction and pavement performance.
Main Components of Our Hot Mix Plant standard supply:
Cold Aggregate Feeder Bins: For cold aggregate storage – 4 bins. Each bin having independent discharge gate & variable speed auxiliary belt drive for proportioning of aggregates.
Single Deck Vibratory Screen: For oversize material removal. Screen mesh size 40 mm.
Slinger Conveyor: Endless rubber belt conveyor for feeding screened aggregates in to dryer drum.
Rotary Drum: For drying, heating & mixing of aggregates with asphalt (bitumen) and filler material.
Dryer Burner: High pressure jet, two stage burner suitable for LDO & Diesel fuel.
Primary Dust Collector: Multi cone type with worm screw mounted on same chassis of Rotary Drum and is fitted adjacent to hot mix asphalt output chamber.
Load Out Conveyor: Heat Resistant endless rubber belt conveyor fitted with hydraulically operated Gob Hopper to deliver the hot mix asphalt in to the tipper without segregation.
Asphalt Tank: Insulated asphalt storage tank with bitumen pumping station consisting of variable speed AC Motor coupled with worm reduction gearbox & jacketed bitumen pump.
Mineral Filler Unit: Filler hopper with rotary valve, driven by AC variable speed motor, to deliver the filler material into the mixing zone of Rotary Drum.
Fuel Tank: For storing fuel, with piping and pump.
Secondary Dust Collector: Wet Scrubber type with Venture Duct & nozzles to absorb the dust & gases escaping from Primary Dust Collector. System supplied with monoblock water pump.
Control Panel: Electronic Control Panel with Printer for operating & controlling the Asphalt Plant.
Control Cabin: Insulated Cabin with Air Conditioner for housing the control panel and operating the Asphalt Plant.
Our Hot Mix Plant Models: (Continuous type, Drum Mix Plant)
|
Model |
Model |
|
|
Stationary type |
Mobile type |
Production Capacity |
|
SDM-30 |
MDM-30 |
30 to 40 TPH |
|
SDM-40 |
MDM-40 |
40 to 60 TPH |
|
SDM-60 |
MDM-60 |
60 to 90 TPH |
|
SDM-90 |
MDM-90 |
90 to 120 TPH |
|
SDM-120 |
MDM-120 |
120 to 150 TPH |
