Bitumen Sprayer

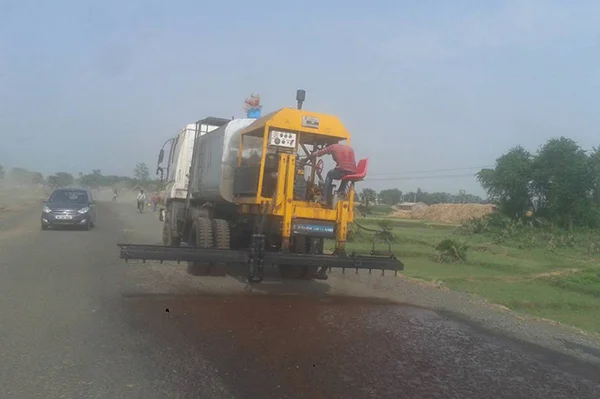

Bitumen Sprayer, also known as Asphalt Distributor or Bitumen Pressure Distributor, is mostly used in tack coat application during road construction. Bitumen Sprayer Truck or Manual Bitumen Sprayer is used for uniform spraying of hot bitumen on road surface before laying hot mix asphalt.

Bitumen Sprayer Manufacturers

We are established Bitumen Sprayer Manufacturers in India with wide experience in the industry.

We manufacture Skid Mounted Bitumen Sprayers in tank capacities of 4000 ltrs. to 8000 ltrs. that are suitable to be mounted on standard truck chassis, and Small Trolley Mounted Bitumen Sprayers, with tank capacities of 600 ltrs. to 3000 ltrs., that are towable by tractor.

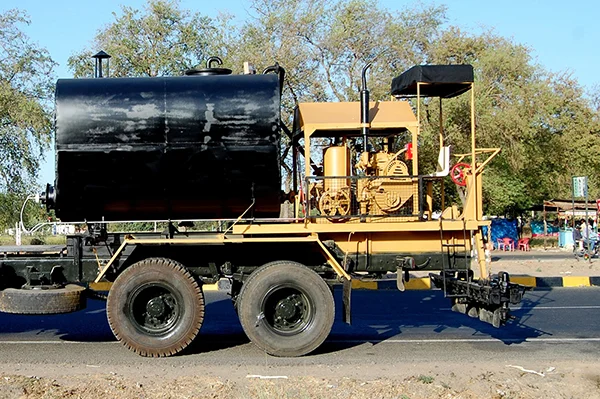

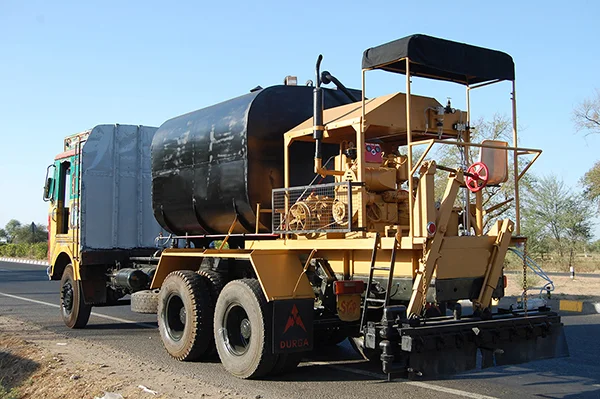

Skid Mounted Bitumen Sprayer

Our Skid Mounted Bitumen Sprayer is suitable to be mounted on standard truck chassis offering the advantage of utilizing used or locally available truck. The unit is equipped with Insulated Bitumen Tank, Diesel engine prime mover, Positive Displacement type Bitumen Pump, Bitumen Piping with mechanical valves, Air Compressor, Burner, Foldable Spray Bar with nozzles, Flexible Hand Spray attachment etc.

• Suitable to be mounted on standard truck chassis.
• Insulated Asphalt Tank of 4000 ltrs. to 8000 ltrs. Capacity.
• Suitable for Bitumen & Emulsion spraying.
• Foldable spray bars with basic width 2.5 mtrs. (min) to 4.2 mtrs. (max).
• Flexible Hand spraying attachment.
• Powered by 25 H.P., two cylinder, air cooled diesel engine.
• Spray nozzles valve operated pneumatically.
• Positive displacement type Asphalt Pump.

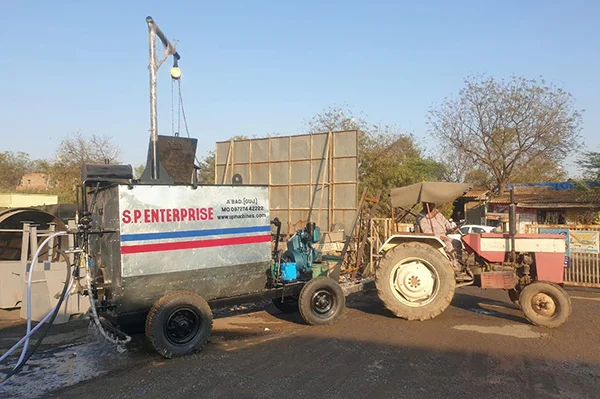

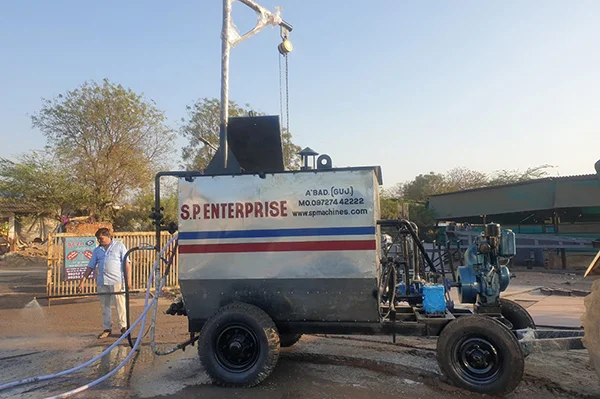

Trolley Mounted Bitumen Sprayer

Manufactured in bitumen tank capacities ranging from 600 ltrs. to 3000 ltrs., it is small bitumen sprayer constructed on trolley type chassis with wheels and tow bar to make it towable with tractor like vehicle.

Our Trolley Mounted Bitumen Sprayers are equipped with Insulated Bitumen Tank, Diesel Engine prime mover, Positive Displacement type Bitumen Pump, Bitumen Piping with mechanical valves, Air Blower / Air Compressor, Burner, Hand Spray Bar, Pneumatic tyres, Tow Bar and Chain Pulley Block.

• Insulated bitumen tank of 600 ltrs. to 3000 ltrs. with burner.
• Powered by single cylinder air cooled diesel engine.
• Bitumen pumping system comprising of positive displacement gear type bitumen pump.
• Air Blower / Air Compressor.
• Hand spray bar fitted with nozzle.
• Mounted on trolley with 2 / 4 nos. tyres & tow bar.
• Air Hose for cleaning road surface with compressed air prior to bitumen spraying. (with Air Compressor Model only)
• Chain Pulley Block with stand for handling Bitumen Drums.

Bitumen Emulsion Sprayer

Our sprayers can be referred as Bitumen Emulsion Sprayer as our sprayers are suitable for both Bitumen and Emulsion spraying. You may choose any of the above type as per your requirement for bitumen and emulsion spraying.

Bitumen Sprayer for Sale

Contact us for your requirement of Bitumen Sprayer with the type and capacity of your interest. We will be pleased to serve you.

Bitumen Sprayer Machine Price

Our Bitumen Sprayer prices are very competitive with the host of features to fulfill your bitumen spraying requirement. Please feel free to contact us for our bitumen sprayer machine price.
